Λεπτομέρειες για το προϊόν
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: E-link
Πιστοποίηση: CE, FCC
Αριθμό μοντέλου: Lnk-POE200W
Έγγραφο: E-link LNK-PSW Series PoE I....0.pdf
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min: 1 PCS
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Βιομηχανική σημείου εισόδου συσκευασία χαρτοκιβωτίων διακοπτών τυποποιημένη
Χρόνος παράδοσης: 7-10 εργάσιμες ημέρες
Όροι πληρωμής: L/C, T/T, Western Union, MoneyGram, PayPal
Δυνατότητα προσφοράς: 100000 τεμάχια/μήνα
Θερμοκρασία λειτουργίας:: |
0 έως +40°C (32°F έως 104°F) |
Μέγεθος (LxWxH):: |
84×47×31mm |
περίπτωση: |
Μεταλλική θήκη |
Βάρος: |
120 γραμμάρια |
Υγρότητα: |
Μέγιστο 95% RH (non-condensing) |
ισχύς εξόδου: |
24W/48W προαιρετικά |
Θερμοκρασία λειτουργίας:: |
0 έως +40°C (32°F έως 104°F) |
Μέγεθος (LxWxH):: |
84×47×31mm |
περίπτωση: |
Μεταλλική θήκη |
Βάρος: |
120 γραμμάρια |
Υγρότητα: |
Μέγιστο 95% RH (non-condensing) |
ισχύς εξόδου: |
24W/48W προαιρετικά |
Product Advantages
► Compact wall mount design
► No additional power cables required
► Built in protection circuits
► Supports 10/100M or 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

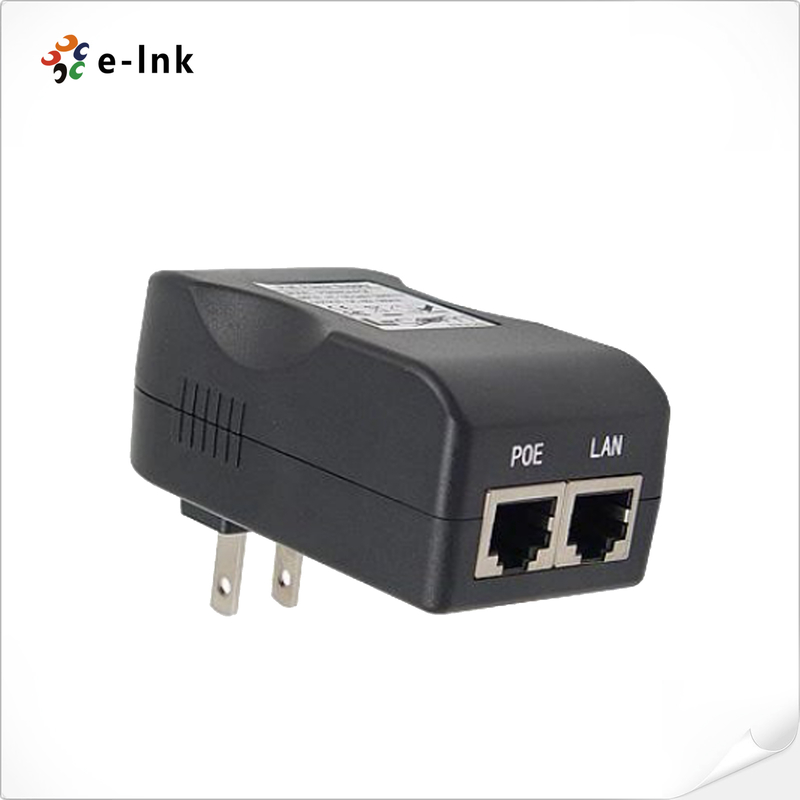

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.
Technical Indexes
Parameter |
Specifications |
Data Rate |
10/100Mbps 10/100/1000Mbps |
Connectors |
2xRJ45 Jacks |
Input Power |
90-240V AC ,50-60Hz |
Output Voltage |
12V/24V/48V/52V/56VDC optional |
Output Current |
0.5A/0.8A/0.9A/1.0A/2.0A Optional |
Output Power |
24W/48W optional |
Wiring |
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
LED Display |
YES |
Over Load Protection |
115%-150% of Rated Power |
Operating Temperature |
0 to +40°C (32°F to 104°F) |
Operating Humidity |
Max. 95% RH(non-condensing) |
Dimension (LxWxH) |
84×47×31mm |
Weight |
120g |
Ordering Information
Model |
Decription |
LNK-POE200W |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W |
LNK-POE200WT |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W |
LNK-POE300W |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W |
LNK-POE300WT |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W |
