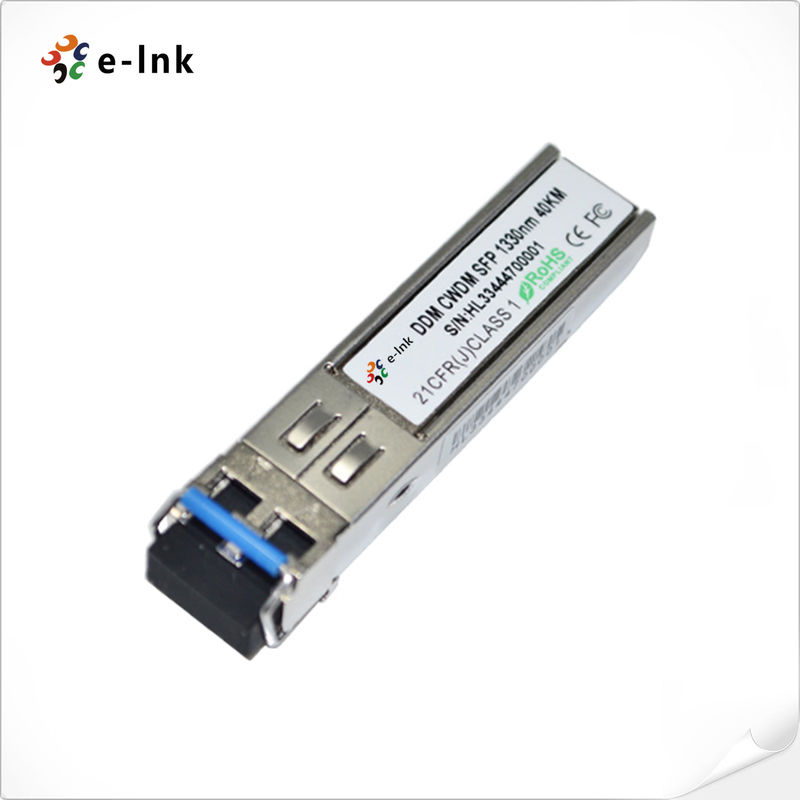

3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA)

Name: 3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA)
Brand: E-link China Technology Co.,LTD
SKU: E-link LNK-CWDM-SFP3G-XX40
Price: 395.00 USD
Availability: InStock

Λεπτομέρειες για το προϊόν

Place of Origin: China

Μάρκα: E-link

Model Number: E-link LNK-CWDM-SFP3G-XX40

Όροι πληρωμής και αποστολής

Minimum Order Quantity: 1 pcs

Τιμή: Διαπραγματεύσιμα

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Βρείτε την καλύτερη τιμή

Επικοινωνήστε τώρα

Προδιαγραφές

Περιγραφή

Προδιαγραφές

Επισημαίνω:

Form Factor:	Video SFP Transceiver	Data Rate:	3 Gb/s
Wavelength:	1270~1610nm	Weight:	0.025Kg
Operating Temperature (℃):	0°C to 70°C (32°F to 158°F)	Storage Temperature:	-40°C to 85°C (-40°F to 185°F)

Form Factor:	Video SFP Transceiver
Data Rate:	3 Gb/s
Wavelength:	1270~1610nm
Weight:	0.025Kg
Operating Temperature (℃):	0°C to 70°C (32°F to 158°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)

Περιγραφή

3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA)

Advantages

► SMPTE 297-2006 Compatible Features

► Speed from 50 Mbps to 2.97 Gbps

► Distance up to 40km for 3G-SDI

► Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI

► 18 Wavelength CWDM DFB Transmitter

► Hot-plug gable SFP footprint

► SFP MSA compliant

► Digital Diagnostic functions available through the I2C interface

► Single +3.3V power supply

► Low Power Consumption

► Operating case temperature: 0 to +70°C

► Ohs compliant and Lead-Free

Overview

E-link LNK-CWDM-SFP3G-XX40 is high performance, cost-effective 3G-SDI CWDM optical transceiver modules for long reach video transmission application over single mode fiber (SMF). It provides the data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. It provides the maximum transmission distance of 40km over single mode fiber at 3Gbps pathological signals. It is available for all 18 CWDM channels from 1270nm to 1610nm wavelengths, this helps the customer to increase the bandwidth of an existing video optical infrastructure without adding new fiber strands. LNK-CWDM-SFP3G-XX40 is MSA compliant.

This 3G SDI CWDM video SFP module is Class I Laser products per FDA/CDRH and IEC-60825 standards.

Technical Indexes

Standards:	INF-8074i SFP (Small Form factor Plug gable) Transceiver
	SFF-8472 Diagnostic Monitoring Interface for Transceiver
	SMPTE 259M-2008 SDTV Digital Signal/Data Serial Digital Interface (SD-SDI)
	SMPTE 292M-2008 1.5 Gbps Signal/Data Serial Interface (HD-SDI)
	SMPTE 344M-2000 540 Mbps Serial Digital Interface
	SMPTE 424M-2006 3Gbps Signal/Data Serial Interface (3G-SDI)
Part Number	LNK-CWDM-SFP3G-XX40
Form Factor	Video SFP Transceiver
Data Rate	3 Gb/s
Wavelength	1270~1610nm
Fiber Type	SMF
Max. Distance	40 km
Optical Components	DFB/PIN
Transmitter Power	-2 ~3 dBm
Extinction Ratio	>6 dB
Receiver Sensitivity	< -20 dBm
Receiver Overload	>-3 dBm
Connector	Duplex LC
Digital Diagnostic Monitoring (DDM)	Support as default
Weight	0.025Kg
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Application	SMPTE 424M (2.97Gb/s)
	SMPTE 292M (1.485Gb/s)
	SMPTE 259M (270/360Mb/s)
	3G-SDI/HD-SDI/SD-SDI Fiber Converter
	High-density digital video routers & switches
	Broadcast cameras, HD Camera or Monitor System
MTBF	> 200,000 hrs

Ordering Information

Model	Description
LNK-CWDM-SFP3G-2740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1270nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-2940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1290nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1310nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3340	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1330nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3540	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1350nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1370nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-3940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1390nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1410nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4340	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1430nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4540	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1450nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1470nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-4940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1490nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1510nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5340	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1530nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5540	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1550nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5740	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1570nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-5940	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1590nm, 40km, LC, DDMI, MSA
LNK-CWDM-SFP3G-6140	3Gb/s SDI CWDM SFP Video Optical Transceiver, 1610nm, 40km, LC, DDMI, MSA

Application

3G-SDI CWDM 1270~1610nm 40km Digital Video SFP Optical Transceiver (MSA) 0
