Λεπτομέρειες για το προϊόν
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: E-link
Πιστοποίηση: ISO9001, CE, ROHS, FCC
Αριθμό μοντέλου: LNK-WP901
Όροι πληρωμής και αποστολής
Ποσότητα παραγγελίας min: 1 PCS
Τιμή: US$215-US$219
Συσκευασία λεπτομέρειες: HDMI Fiber PoE Εγκεκέλτιες Πρότυπη Συσκευασία Κουτίνας
Χρόνος παράδοσης: 1-3 εργάσιμες ημέρες
Όροι πληρωμής: T/T, Western Union, MoneyGram, PayPal
Δυνατότητα προσφοράς: 1000/μήνα
Εισαγωγή:: |
48 ~ 57VDC |
Τα στοιχεία επιταχύνουν:: |
10/100/1000Mbps |
Κοινή προστασία κύματος τρόπου (10/700us):: |
6KV |
ΝΑ ΤΟΠΟΘΕΤΗΣΕΙ:: |
Τοποθετημένος με πόλο |
IP που εκτιμάται:: |
IP67 |
Μέγεθος (LxWxH):: |
260mm x 210mm x 80mm |
Εισαγωγή:: |
48 ~ 57VDC |
Τα στοιχεία επιταχύνουν:: |
10/100/1000Mbps |
Κοινή προστασία κύματος τρόπου (10/700us):: |
6KV |
ΝΑ ΤΟΠΟΘΕΤΗΣΕΙ:: |
Τοποθετημένος με πόλο |
IP που εκτιμάται:: |
IP67 |
Μέγεθος (LxWxH):: |
260mm x 210mm x 80mm |

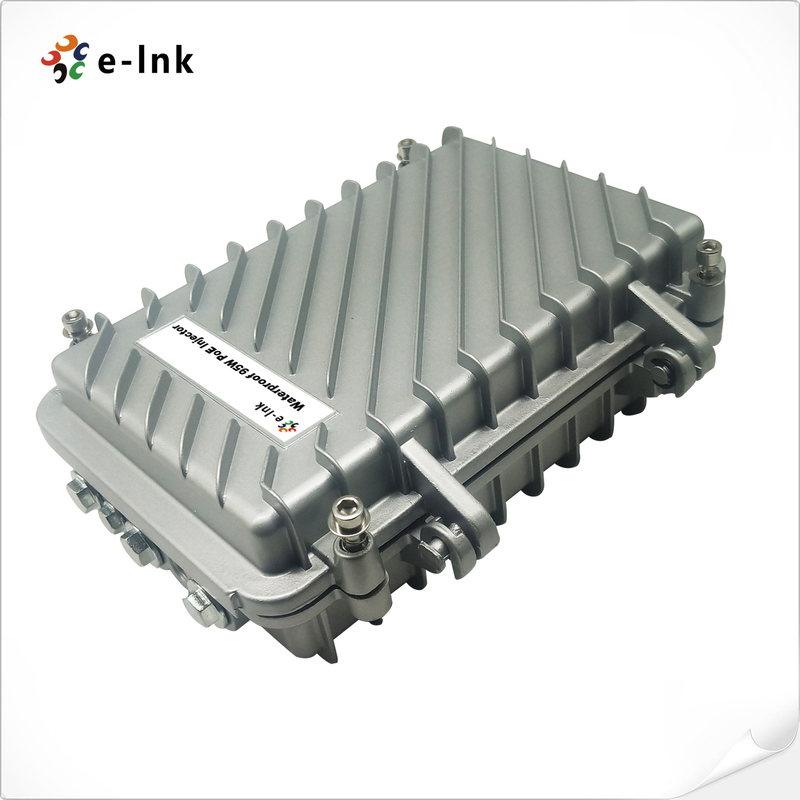

Model : LNK-WP901
Product Description & Overview
Engineered for demanding outdoor applications, the LNK-WP901 represents a high-performance
industrial-grade PoE injector delivering robust 95W power output through advanced 4-pair power
distribution. This professional-grade solution features comprehensive 6KV surge protection (10/700μs)
on all network interfaces, ensuring maximum equipment safety in challenging environmental conditions.
Fully compliant with IEEE 802.3bt PoE++ standards, this industrial injector maintains reliable Gigabit
Ethernet connectivity while providing sufficient power for high-demand devices including PTZ cameras,
wireless access points, and advanced IP terminal equipment.
The unit's weatherproof construction guarantees consistent operation across extreme temperature ranges
while protecting against moisture, dust, and electrical interference. Designed specifically for outdoor
infrastructure deployments, this PoE injector enables seamless integration of power-hungry devices
using existing Ethernet cabling without requiring network modifications. Its industrial-grade components
and enhanced protection mechanisms make it ideally suited for security systems, smart city applications,
and industrial automation projects where uninterrupted power delivery and network reliability are critical.
The injector's plug-and-play installation simplifies deployment while maintaining full compatibility with
standard network infrastructure, offering a complete power solution for outdoor IP-based systems
requiring high-power PoE delivery.
Key Features Bullets
Industrial IP67-Rated Enclosure
Complete waterproof and dustproof protection for harsh outdoor environments
Advanced 6KV Surge Protection
Comprehensive 10/700μs surge protection on both LAN and PoE ports
High-Power 95W LTPoE++ Output
Supports 95W power delivery for demanding PDs using 4-pair power distribution
Extended Temperature Operation
Industrial-grade -40°C to 80°C operating range for extreme conditions
Dedicated Data & Power Ports
Separate RJ45 input and PoE output ports for optimized connectivity
Flexible Wall-Mount Installation
Versatile mounting options for easy deployment in various environments
Technical Specifications & Indexes
Parameter |
Specifications |
Standard |
IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250 |
Input & Output |
Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps |
Working Environment |
Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
AC Surge Protection |
Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
PoE Surge Protection |
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
Mechanical Characteristics |
Case: Metal |
Color: Gray |
|
Mounting: Pole-mounted |
|
IP Rated: IP67 |
|
Size (LxWxH): 260mm X 210mm X 80mm |
|
Weight: 1.5KG |
|
Safety Approvals |
CE, FCC, IP67 |
EMI |
FCC CFR47 Part 15, EN55024, EN55032 |
|
IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air) IEC61000-4-3(RS) 10V/m(80MHz~2GHz) IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM IEC61000-4-6(CS) 10V(150kHz~80MHz) |
Immunity |
IEC60068-2-6(Vibration) IEC60068-2-27(Impact) IEC60068-2-32(Free Fall) |
Ordering information
Model |
Description |
LNK-WP901 |
Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection |
Application Scenarios
Powering high-wattage PTZ surveillance cameras in outdoor environments
Deploying industrial wireless systems in extreme weather conditions
Supporting outdoor digital signage and information display systems
Enabling connectivity for industrial automation equipment outdoors
Providing reliable PoE for transportation infrastructure monitoring systems
