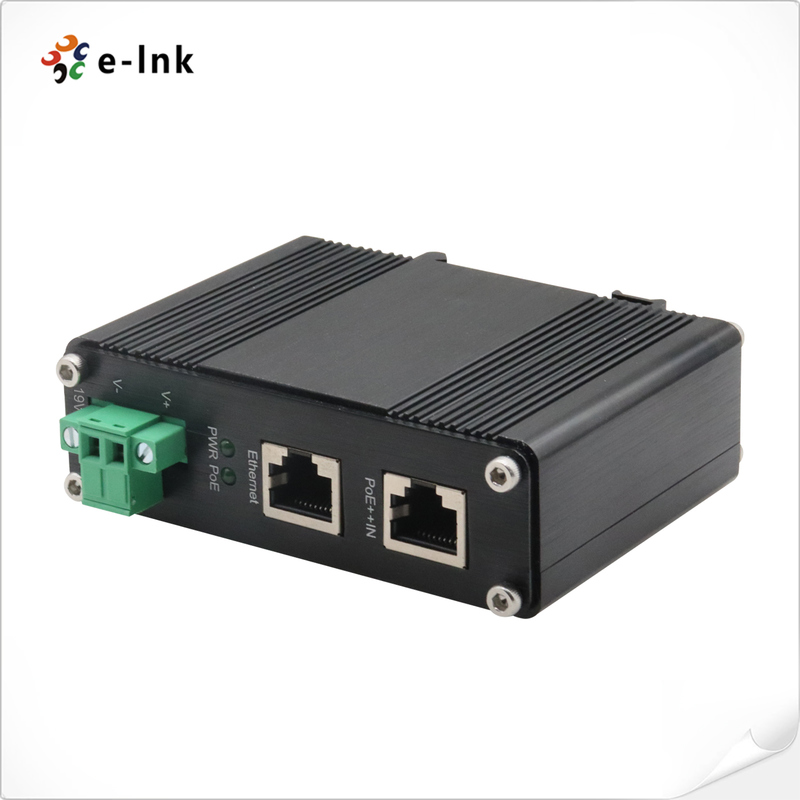

Industrial PoE++ Splitter 19VDC 802.3bt Gigabit 100m IP40 DIN Rail

Λεπτομέρειες για το προϊόν

Τόπος καταγωγής: ΚΙΝΑ

Μάρκα: E-link

Πιστοποίηση: ISO9001, CE, ROHS, FCC

Αριθμό μοντέλου: Lnk-ins901-19v

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min: 1 PCS

Τιμή: US$44-US$47

Συσκευασία λεπτομέρειες: Poe Power Splitter Standard Carton Συσκευασία

Χρόνος παράδοσης: 1-3 εργάσιμες ημέρες

Όροι πληρωμής: T/T, Western Union, MoneyGram, PayPal

Δυνατότητα προσφοράς: 1000/μήνα

Βρείτε την καλύτερη τιμή
Επικοινωνήστε τώρα
Προδιαγραφές
Επισημαίνω:
Δυνατότητα διήθησης::
1.488.000pps (1000Mbps)
Καλωδίωση::
1000Base-τ: Cat5 ή ανωτέρω
Μέγιστη απόσταση::
CAT5 UTP έως 100m
Ισχύς εξόδου::
36W 19VDC (Τερματικό μπλοκ)
PWR::
ΕΞΟΔΟΣ 19VDC
Επιλογές τοποθέτησης::
Din-rail / wall-mount
Δυνατότητα διήθησης::
1.488.000pps (1000Mbps)
Καλωδίωση::
1000Base-τ: Cat5 ή ανωτέρω
Μέγιστη απόσταση::
CAT5 UTP έως 100m
Ισχύς εξόδου::
36W 19VDC (Τερματικό μπλοκ)
PWR::
ΕΞΟΔΟΣ 19VDC
Επιλογές τοποθέτησης::
Din-rail / wall-mount
Περιγραφή
Industrial PoE++ Splitter 19VDC 802.3bt Gigabit 100m IP40 DIN Rail

Industrial PoE++ Splitter 19VDC 802.3bt Gigabit 100m IP40 DIN Rail

Model : LNK-INS901-19V


 Product Description & Overview

The LNK-INS901-19V series represents a premium industrial-grade Power over Ethernet solution

engineered to deliver both high-speed data transmission and stable 19VDC power conversion for

specialized non-PoE equipment. This professional-grade PoE++ splitter maintains complete compliance

with IEEE 802.3bt standards while supporting full Gigabit Ethernet performance across standard 100-

meter network segments. The sophisticated power management architecture efficiently converts high-

power PoE++ input into precisely regulated 19VDC output through industrial-grade conversion circuitry,

eliminating the requirement for separate electrical infrastructure while substantially reducing deployment

costs for power-demanding edge applications.


Featuring rugged industrial construction with enhanced thermal dissipation and electromagnetic shielding,

this high-performance splitter functions as an advanced powered device (PD) compatible with PoE++

switches and high-power injectors including the LNK-INJ-48-95W series. The innovative plug-and-play

architecture requires absolutely zero configuration, while the industrial-grade screw terminal block

guarantees secure power connections for various 19V professional equipment. Ideal for industrial

automation systems, professional audio/video installations, and high-performance computing applications,

this versatile solution offers exceptional deployment adaptability in challenging environments where both

network reliability and specific voltage requirements are paramount.


The integrated multi-level protection system ensures complete safeguarding of connected equipment

against power anomalies, voltage variations, and circuit faults while maintaining peak efficiency during

continuous operation. This advanced splitting solution facilitates seamless integration of 19V specialized

devices into modern PoE++ networks, delivering exceptional value for system integrators managing

sophisticated network infrastructures across industrial plants, broadcast facilities, and specialized

installations requiring stable 19VDC power delivery and high-speed data transmission for professional-

grade equipment and high-power network peripherals in demanding operational conditions.


Key Features Bullets

  • High-Power PoE++ Compatibility
    Supports IEEE 802.3af/at/bt standards including 95W PoE++ input capability

  • Professional Power Separation Technology
    Efficiently splits data and power from single PoE++ source

  • Industrial-Grade Environmental Protection
    IP40-rated metal housing with -40°C to 80°C operating range

  • Advanced Circuit Safety System
    Integrated short-circuit and overload protection mechanisms

  • Gigabit Network Performance
    10/100/1000Base-T compatibility with 100-meter transmission distance

  • Dedicated Port Configuration
    Single RJ-45 PoE input + data output + 19VDC terminal block

  • Flexible Installation Options
    DIN-rail and wall-mount compatible for versatile deployment

  • Comprehensive Status Monitoring
    Multi-function LED indicators for real-time diagnostics

  • Robust Industrial Construction
    Fanless metal design for harsh environment operation


Technical Specifications & Indexes

Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt 4-pair Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Interface:

“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T

“Data” Out Port: 1 x RJ-45 10/100/1000Base-T

DC Out Plug Connector: 1 removable 2-Pin terminal block

Power over Ethernet

PoE Standard:

IEEE 802.3af/at/bt Power over Ethernet

Number of devices that can be powered:

1 (19VDC)

(Vary on device’s power requirement; cannot be over 36 watts.)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Power Output:

36W 19VDC (Terminal Block)

Power Consumption:

41W Max.

LED Indicators:

PWR:

19VDC Power OUT

POE:

PoE Power IN

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV



Ordering information

Model

Description

LNK-INS901-19V

Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 36W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.



Application Scenarios

  • Powering industrial motor controllers and automation equipment

  • Supporting high-performance PTZ surveillance camera systems

  • Enabling connectivity for industrial wireless access points

  • Providing PoE++ for professional audio/video equipment

  • Supporting network devices in extreme temperature industrial environments
