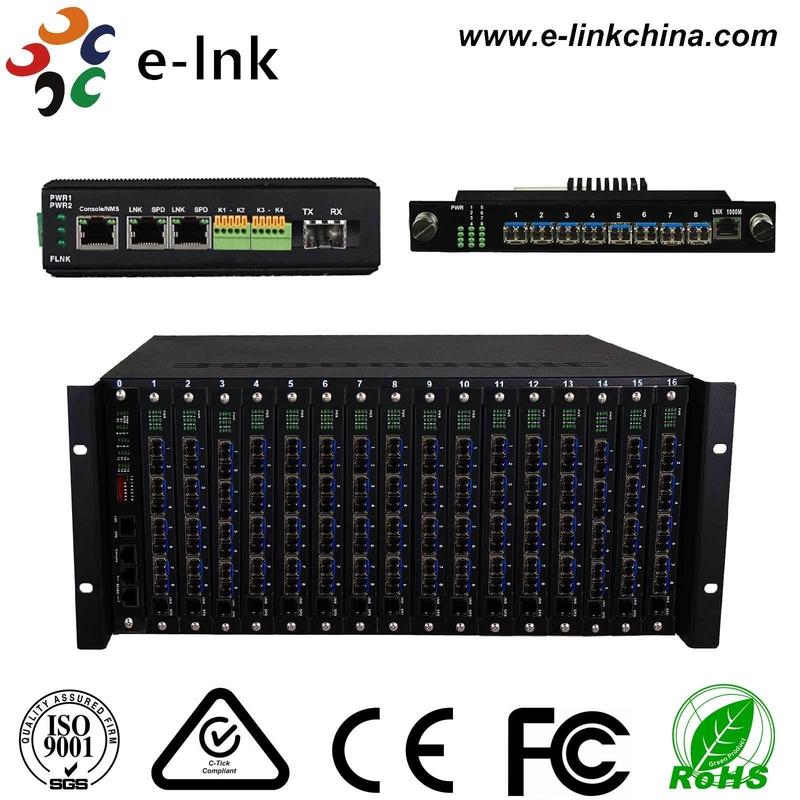

Industrial 2xRS232/422/485 to Ethernet Server System

Fiber optical interface

Working wavelength

1310nm, 1490nm, 1550nm

Rate

100M, full duplex or half-duplex mode

Protocol

Supports IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Table

You can learn 4096 MAC addresses

Physical Interface

FC / SC / ST / LC

Transmission distance

The distance over which the fiber is transported is limited by the loss of the optical path and the additional loss due to the connection terminals, connectors, patch panels. The transmission distance may also be limited by the bandwidth of the optical fiber.

10/100M Ethernet interface

Protocol

Complies with IEEE 802.3, IEEE802.1Q (VLAN)

Rate

10 / 100M adaptive, full / half duplex fully adaptive MAC

Address Table

You can learn 8K MAC address

Physical interface

RJ45 port, support Auto-MDIX (cross / straight line adaptive)

RS232/422/485 Interface

Rate

0-115200Kbps

Interface characteristics

EIA RS232 RS422 RS485

Connector

Phoenix terminal

Working environment

Working temperature

-40°C ~ 80°C

Working Humidity

5%~95 % (no condensation)

Storage temperature

-40°C ~ 85°C

MTBF

> 100,000 hours

Specification & Mechanical

Model

LNK-ISE200

Product Function Description

2*RS232/422/485 Serial Server

Business port description

2*Fast Ethernet electrical2 interface;

1* Fast Ethernet optical interface,

2*RS232/422/485 Interface

Power Supply

Dual redundant power inputs DC9-48V/AC9-48V,

Power consumption <10W

Overload Protection: Support; reverse polarity protection: Support; redundancy protection: Support

Access Terminal: 4-pin plug-in terminal pitch of 5.08mm

Dimensions (LxWxH)

133mm×120mm×41mm

Casing

IP30 protection, Metal case

Installation

35mm DIN-Rail, Wall Mounting

Weight

750g
